Network segmentation divides a flat network into smaller, isolated zones so that a compromise in one zone cannot freely spread to the rest. Think of it as fire doors in a building: one room catches fire, but the doors contain it. That same principle applied to your network is one of the highest-leverage defensive controls available, particularly against ransomware, which depends on unrestricted lateral movement to encrypt everything it can reach.
The core forms you’ll encounter throughout this guide are:
- VLANs and subnets: Logical separation enforced at the switch and router level
- DMZ: A dedicated buffer zone for internet-facing services
- Microsegmentation: Fine-grained, workload-level isolation inside data centers or cloud environments
- Host-based segmentation: Firewall rules and agents applied directly at the endpoint
Key Takeaways
Network segmentation is one of the highest-leverage security controls available to SMBs, and the most effective implementations start small, enforce default-deny policies, and treat segmentation as an ongoing program rather than a completed project.
| Point | Details |
|---|---|
| Start with guest Wi-Fi and IoT | These two quick wins deliver immediate risk reduction and can be implemented relatively quickly. |
| Default-deny inter-VLAN traffic | Permit only explicitly required flows; every other connection should be blocked by policy. |
| Map traffic flows before segmenting | Undocumented application dependencies are the most common cause of outages during rollout. |
| Monitor denied traffic continuously | Spikes in inter-segment denials often signal active scanning or a misconfigured application. |
| Collett Systems LLC manages the full lifecycle | From assessment through ongoing firewall rule management, Collett Systems handles segmentation for SMBs in Southeastern Wisconsin. |
Table of Contents
- Why network segmentation basics matter for your security posture
- Core types of network segmentation and when to use each
- How segmentation is actually enforced under the hood
- Implementation approaches and their real-world trade-offs
- How segmentation fits into Zero Trust architecture
- Practical use cases: where segmentation delivers immediate results
- Common challenges and pitfalls to avoid
- A practical implementation checklist: plan, build, test, operate
- Monitoring, testing, and keeping segmentation effective over time
- Research-backed best practices from NIST, CISA, and OWASP
- How a managed IT provider approaches segmentation for SMB clients
- Collett Systems LLC can handle your segmentation from assessment to operation
- Frequently asked questions about network segmentation
- Sources
Why network segmentation basics matter for your security posture
The security case is direct. When an attacker or ransomware payload lands on one machine, a flat network gives it a clear path to every other machine, share, and server. Segmentation cuts that path. According to the SEI at Carnegie Mellon, segmentation limits lateral movement and confines incidents to a smaller portion of the network, reducing ransomware spread and overall exposure. That single outcome justifies the investment for most small and mid-sized businesses.
Beyond security, segmentation simplifies operations. Troubleshooting a problem on a flat 200-device network means sifting through noise from every device. Segmented networks produce smaller, cleaner traffic domains, so a performance issue on the guest Wi-Fi stays isolated from the server VLAN, and your monitoring tools generate alerts that are actually meaningful.
Compliance benefits are equally concrete. PCI DSS requires that cardholder data environments be isolated from the rest of the network. HIPAA-covered entities use segmentation to limit which systems can reach protected health information. Proper segmentation shrinks your audit scope, which reduces both cost and risk during assessments.
Key security benefit at a glance: CISA recommends treating segmentation as a controllable, reviewable layer within a defense-in-depth strategy, not a one-time configuration you set and forget.
The operational benefits compound over time:
- Reduced broadcast traffic and microbursts contained within smaller collision domains
- Faster incident response because affected segments can be isolated without taking down the whole network
- Cleaner monitoring with fewer false positives from unrelated traffic
- Smaller compliance scope for PCI, HIPAA, and SOC 2 audits
Core types of network segmentation and when to use each

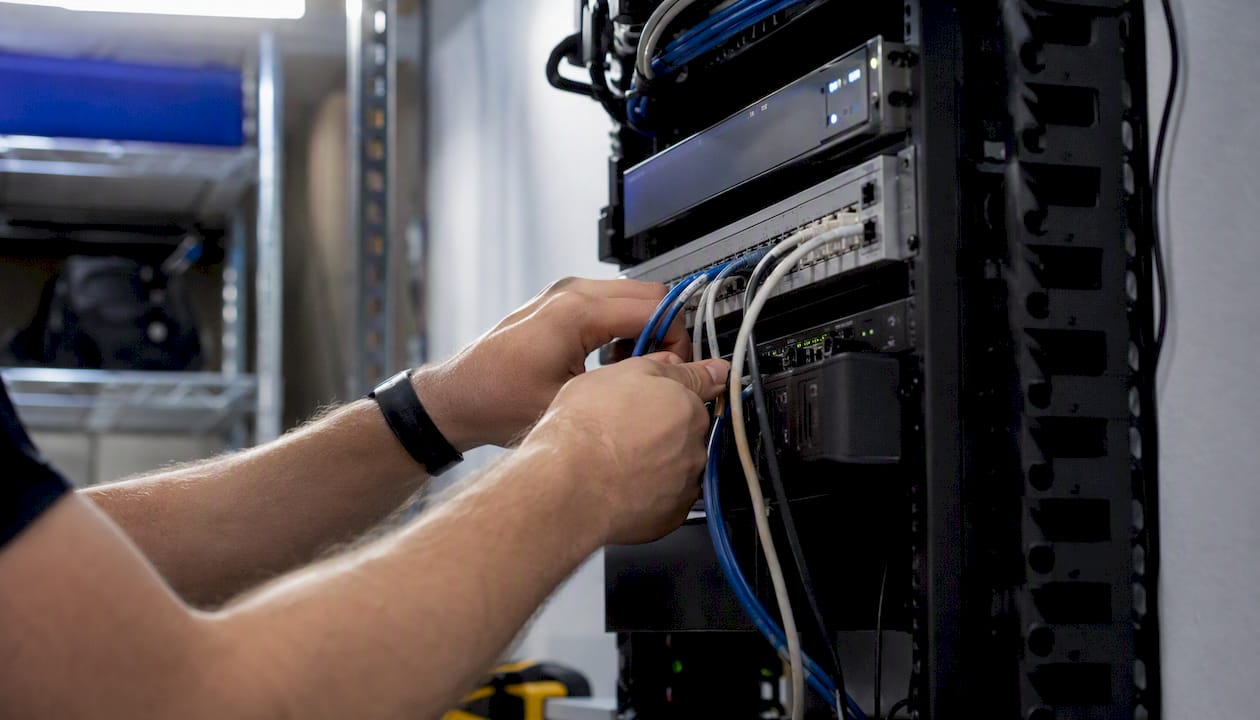

Physical segmentation
Physical segmentation uses separate hardware: distinct switches, routers, and cabling for each zone. It offers the strongest isolation because there is no shared infrastructure to misconfigure. The trade-off is cost and rigidity. Most organizations reserve physical separation for the most sensitive environments, such as operational technology (OT) networks on a manufacturing floor or air-gapped systems handling classified data.
VLAN and subnet segmentation
VLANs (Virtual Local Area Networks) are the most common starting point. A managed switch tags traffic with a VLAN ID at Layer 2, and a firewall or Layer 3 switch controls which VLANs can talk to each other. Subnets operate at Layer 3 and pair naturally with VLANs. Together, they let you run multiple logical networks over the same physical cable plant, which keeps costs manageable while delivering real isolation.
DMZ (demilitarized zone)
A DMZ is a dedicated segment for internet-facing services: web servers, email gateways, DNS resolvers. MITRE ATT&CK recommends hosting public-facing services in isolated DMZ segments to reduce risk to internal systems, and it remains a foundational pattern for any organization running services accessible from the internet. Traffic from the DMZ to the internal network should be default-deny with narrow explicit exceptions.
Microsegmentation
Microsegmentation pushes isolation down to the individual workload or application. Rather than protecting a whole VLAN, you protect each server, container, or VM. NIST SP 800-215 describes identity-based microsegmentation as using cryptographic identities rather than IP addresses for fine-grained policy, which means policies follow the workload even when it moves. This approach is most effective in cloud and virtualized environments where IP addresses change frequently.
Identity-based and host-based segmentation
Identity-based segmentation ties access decisions to user or device identity, not network location. Host-based segmentation applies firewall rules and agents directly on endpoints. Both approaches work well as complements to VLAN-based segmentation, particularly for remote workers and unmanaged devices that don't fit neatly into a physical VLAN.
| Type | Primary intent | Enforcement point | Common tools/techniques | Best-fit use case |
|---|---|---|---|---|
| Physical | Strongest isolation | Separate hardware | Dedicated switches, air gaps | OT networks, classified environments |
| VLAN/Subnet | Logical separation | Managed switch, L3 router | 802.1Q tagging, inter-VLAN routing | SMB general segmentation, PCI scope |
| DMZ | Isolate internet-facing services | Perimeter firewall | Firewall rules, dual-homed interfaces | Web servers, email gateways, DNS |
| Microsegmentation | Workload-level isolation | Hypervisor, host agent, overlay | SDN, VXLAN, security groups | Cloud workloads, data center east-west |
| Identity-based | Context-aware access | Identity provider, policy engine | ZTNA, SDP, conditional access | Remote workers, BYOD, Zero Trust |
| Host-based | Endpoint-level control | OS firewall, endpoint agent | Host firewall rules, EDR agents | Servers, endpoints with mixed trust |
Pro Tip: If you're starting from scratch, VLANs plus a capable firewall with inter-VLAN rules is the right first move for most SMBs. You can add microsegmentation and identity-based controls later without ripping out the VLAN foundation.
How segmentation is actually enforced under the hood
Understanding the technical building blocks helps you configure policies in the right place and avoid gaps.
Layer 2 vs. Layer 3 enforcement
VLANs operate at Layer 2. The switch tags each frame with a VLAN ID (802.1Q), and devices in different VLANs cannot communicate directly, even if they share the same physical switch. To allow controlled communication between VLANs, traffic must pass through a Layer 3 device, typically a firewall or a Layer 3 switch running inter-VLAN routing. That routing hop is where you apply access control lists (ACLs) and firewall rules to permit only what you explicitly allow.
Access control lists and firewall rules
ACLs on routers and switches filter traffic based on source/destination IP, port, and protocol. Firewall rules do the same but with stateful inspection, meaning the firewall tracks connection state and can block responses to unsolicited inbound traffic. For inter-VLAN segmentation, stateful firewall rules are almost always preferable to simple ACLs because they handle asymmetric routing and connection tracking correctly.
Overlays: VXLAN and SDN
In large data centers and cloud environments, VLANs hit practical limits (4,094 VLAN IDs, spanning-tree complexity). VXLAN (Virtual Extensible LAN) encapsulates Layer 2 frames inside UDP packets, creating logical overlay networks that scale to millions of segments and span physical boundaries. Software-Defined Networking (SDN) controllers automate the creation and enforcement of these overlays, letting you define segmentation policy centrally and push it to every enforcement point. For most SMBs, VXLAN and SDN are cloud-provider concerns handled transparently by AWS VPCs or Azure VNets.
Where to configure segmentation policy:
- Managed switch: VLAN assignment, trunk ports, 802.1Q tagging
- Perimeter or next-gen firewall: Inter-VLAN rules, DMZ policies, stateful inspection
- Hypervisor (VMware, Hyper-V): Virtual switch port groups, distributed firewall rules
- Cloud console (AWS, Azure, GCP): VPC/VNet subnets, security groups, network ACLs
- Endpoint agent: Host-based firewall rules, microsegmentation agent policies
Implementation approaches and their real-world trade-offs
VLAN plus firewall (the standard starting point)
This is the most common approach and the right one for most SMBs. You configure VLANs on a managed switch, set up a firewall to route between them, and write rules that default-deny inter-VLAN traffic with explicit allows for required services. The upside is manageable complexity, wide understanding, and compatibility with almost every device. The downside is that granularity stops at the VLAN boundary. If two servers share a VLAN, they can talk freely.
- Pros: Low cost, broad device support, well-documented
- Cons: Coarse-grained, requires careful VLAN design to avoid sprawl
Host-based and agent-based segmentation
Installing a firewall agent on each server or endpoint lets you enforce rules at the workload level regardless of VLAN placement. This works well for servers that need to communicate across VLANs for legitimate reasons but still need east-west controls. The management overhead is real: every new server needs an agent, and policy changes must be pushed to every endpoint.
- Pros: Fine-grained, follows the workload, works in mixed environments
- Cons: Agent deployment and lifecycle management, potential for policy drift
Identity-based microsegmentation
Rather than relying on IP addresses, identity-based systems use certificates, tokens, or directory attributes to make access decisions. This pairs naturally with Zero Trust architectures and handles dynamic cloud environments where IPs change constantly. The complexity and cost are higher, and the approach requires a mature identity infrastructure (directory services, PKI, or a cloud identity provider) before it delivers value.
- Pros: Highly granular, resilient to IP changes, strong audit trail
- Cons: Requires mature identity infrastructure, higher implementation cost
SDP and SASE
Software-Defined Perimeter (SDP) and Secure Access Service Edge (SASE) extend segmentation to remote users and branch offices by brokering access through a cloud-delivered policy engine. Users never touch the network directly; they access only the specific applications they're authorized for. For distributed teams, this is a compelling complement to on-premises VLAN segmentation. Secure remote access patterns that pair with segmentation strategies are particularly relevant for organizations with remote workers who need controlled access to segmented internal resources.
Legacy applications and unmanaged devices are the hardest constraint in any segmentation project. An older manufacturing application that broadcasts on the local subnet, or a printer that needs to reach every workstation, can break if you segment too aggressively without first mapping its traffic flows.
How segmentation fits into Zero Trust architecture
Zero Trust operates on a simple premise: no user, device, or workload is trusted by default, regardless of where it sits on the network. Network segmentation is one of the most practical building blocks for getting there.
Traditional perimeter security assumes that anything inside the network is safe. Zero Trust rejects that assumption entirely. Segmentation enforces it structurally: even if an attacker gets inside, they face another boundary at every segment. The Zero Trust model requires continuous verification of identity and context before granting access, and segmentation provides the network-layer enforcement that makes those policies stick.
Microsegmentation is the most direct expression of Zero Trust at the network layer. When each workload has its own identity and policy, you can enforce least-privilege access between applications, not just between network zones. NIST's guidance on identity-based microsegmentation describes this as assigning identities to applications and workloads so policies can be expressed at the service level rather than relying on IP-based rules alone.
How segmentation supports Zero Trust in practice:
- Limits the blast radius when a credential is compromised
- Forces east-west traffic through inspection points where policies can be evaluated
- Provides the network-layer enforcement that identity policies alone cannot guarantee
- Creates audit trails for inter-segment traffic that support continuous verification
Pro Tip: Combine identity context with segmentation policies wherever possible. A firewall rule that says "VLAN 20 can reach VLAN 30 on port 443" is good. A rule that says "authenticated finance users on managed devices can reach the accounting server on port 443" is better. The identity-first security model makes this combination practical even for smaller teams.
Practical use cases: where segmentation delivers immediate results

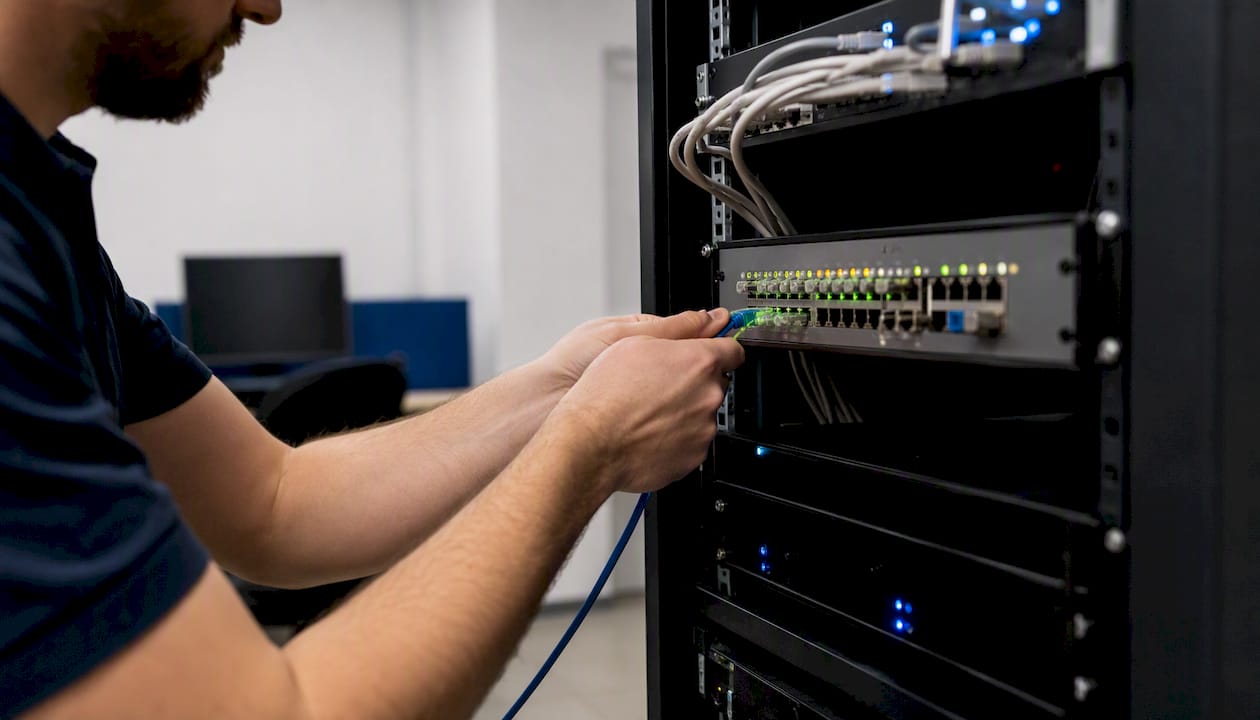

Guest Wi-Fi isolation
This is the easiest win and the right place to start. Guest devices, personal phones, and contractor laptops belong on a VLAN that can reach the internet but nothing else. Without this, a guest device infected with malware has the same network access as your file server.
IoT and camera segmentation
IP cameras, smart thermostats, badge readers, and industrial sensors are notoriously difficult to patch and often run outdated firmware. Placing them on a dedicated IoT VLAN with no access to user or server segments limits the damage if one is compromised. Traffic from the IoT VLAN should be restricted to only the specific management systems that need to reach those devices.
POS and payment scope reduction
PCI DSS requires that payment card data be isolated from the rest of the network. A dedicated POS VLAN connected only to the payment processor and a management interface dramatically reduces your PCI audit scope. Without segmentation, every device on your network is potentially in scope.
Dev/test vs. production separation
Development environments routinely run unpatched software, experimental configurations, and test credentials. Keeping dev and test on separate VLANs from production prevents a misconfiguration or test malware from reaching live systems. This is a common gap in smaller organizations that run everything on one flat network.
Cloud workload isolation
In AWS, Azure, or GCP, segmentation maps to VPCs, VNets, subnets, and security groups. A web tier, application tier, and database tier each live in separate subnets with security group rules that allow only the specific traffic each tier needs. MITRE ATT&CK specifically recommends using VLANs, firewalls, and DMZs to enforce logical separation, and the same principle applies directly to cloud security groups.
Prioritization cue: Guest Wi-Fi isolation and IoT segmentation deliver the highest immediate risk reduction with the least disruption. Start there, then move to POS scope reduction and server/workstation separation.
Common challenges and pitfalls to avoid
Segmentation projects fail in predictable ways. Knowing the failure modes before you start saves significant rework.
Over-segmentation is the most common mistake among teams that read the theory and go too far too fast. Creating 30 VLANs for a 50-person office generates management overhead that exceeds the security benefit. Start with five to seven segments and add granularity only where the risk justifies it.
Forgotten multifunction devices cause outages. Printers that scan to email, VoIP phones that pull firmware from a server, and badge readers that log to a central system all have traffic flows that break when you segment without mapping them first. Document every device's communication requirements before you move it to a new VLAN.
Application dependencies are the hidden landmine. A line-of-business application might reach a database, an authentication server, a license server, and a file share, all on different subnets. If you don't map those flows before segmenting, users will call the help desk the moment you flip the switch.
Poor documentation turns a good segmentation design into a liability over time. Six months after implementation, nobody remembers why a specific rule exists, and teams start adding exceptions rather than reviewing whether the original rule is still correct.
Common red flags during rollout and operation:
- Users unable to reach applications they could access before the change
- Admin lockouts because management VLANs weren't properly planned
- Misrouted traffic appearing in firewall logs from unexpected source segments
- Monitoring tools losing visibility into segments they previously covered
Governance matters as much as the initial design. Every firewall rule and VLAN assignment should go through a change-control process. Rules added as "temporary" exceptions have a way of becoming permanent. A quarterly rule review, even a lightweight one, catches drift before it becomes a security gap.
A practical implementation checklist: plan, build, test, operate
Phase 1: Discovery and mapping
- Inventory every device on the network, including IoT, printers, and unmanaged endpoints
- Map traffic flows between devices, especially for line-of-business applications
- Identify mission-critical assets and their communication requirements
- Define your initial segment list (users, servers, IoT, guest, management, POS if applicable)
- Document current firewall rules and any existing VLAN configurations
Phase 2: Quick wins (weeks 1, 2)
- Create a guest Wi-Fi VLAN with internet-only access and no inter-VLAN routing
- Move IoT devices to a dedicated VLAN with a default-deny outbound policy and narrow exceptions
- Verify that guest and IoT segments cannot reach user or server segments
- Test from a guest device: confirm internet access works and internal resources are unreachable
Phase 3: Staged VLAN and firewall implementation (weeks 3, 8)
- Build out remaining VLANs (users, servers, management, POS) in a lab or staging environment
- Write inter-VLAN firewall rules based on the traffic flows documented in Phase 1
- Roll out one VLAN at a time, starting with the lowest-risk segment
- Test each segment before moving to the next; have a rollback plan for each change
- Validate application flows after each VLAN migration
Phase 4: Monitor, document, and review (ongoing)
- Enable logging for all inter-segment denied traffic
- Set up alerts for scanning behavior or unusual east-west connections
- Schedule a quarterly firewall rule review
- Update documentation whenever a rule or VLAN assignment changes
| Phase | Key tasks | Estimated effort |
|---|---|---|
| Phase 1: Discovery | Device inventory, traffic flow mapping, segment design | 1, 2 weeks |
| Phase 2: Quick wins | Guest Wi-Fi + IoT VLAN, test and verify | 1, 2 weeks |
| Phase 3: Full rollout | Remaining VLANs, firewall rules, staged migration | 3, 6 weeks |
| Phase 4: Ongoing | Log review, rule audits, documentation updates | 4, 8 hours/quarter |
Pro Tip: The SEI guidance on segmentation is clear on this: avoid analysis paralysis. Guest Wi-Fi isolation and IoT segregation often deliver immediate risk reduction without a major re-architecture. Start small, prove the model, then expand.
Monitoring, testing, and keeping segmentation effective over time
A segmentation policy that nobody monitors is a policy that will drift. The enforcement is only as good as your visibility into what's actually crossing segment boundaries.
What to monitor:
- Denied inter-segment traffic in firewall logs (a spike in denials often signals a misconfigured application or an active scan)
- East-west connections between segments that should have no reason to communicate
- Scanning behavior originating from within a segment (a compromised device probing its neighbors)
- Authentication failures at inter-segment boundaries
Recommended tests:
- Scheduled penetration tests that specifically attempt lateral movement across segment boundaries
- Change-controlled rule audits: review every firewall rule for continued necessity at least quarterly
- Segmentation verification exercises: from a device in one segment, attempt to reach resources in another and confirm the deny works as expected
Tool categories to consider:
- Flow collectors (NetFlow, sFlow, IPFIX) for visibility into traffic volumes and patterns between segments
- Intrusion detection and prevention systems (IDS/IPS) positioned at inter-segment chokepoints
- Firewall rule auditing tools that flag unused, overly permissive, or duplicate rules
- Endpoint detection and response (EDR) platforms that provide host-level visibility to complement network-layer segmentation
Segmentation without monitoring is a static defense. Monitoring turns it into a detection capability.
Research-backed best practices from NIST, CISA, and OWASP
The authoritative guidance on segmentation is consistent across the major standards bodies, and it points in the same direction: treat segmentation as a continuous program, not a project with a completion date.
Key recommendations from each standard:
- NIST SP 800-215: Use microsegmentation and identity-based policies for fine-grained controls; assign identities to applications and workloads rather than relying solely on IP-based rules
- CISA: Layer segmentation into a defense-in-depth strategy; treat it as a reviewable, controllable security layer with documented governance
- MITRE ATT&CK (M1030): Use VLANs, firewalls, and DMZs to enforce logical separation; place internet-facing services in isolated DMZ segments to reduce risk to internal systems
- OWASP: The Network Segmentation Cheat Sheet provides practical controls and schematic guidance for isolating services; isolate critical service networks to limit exposure from any single compromised component
Practical actions mapped to each standard:
- From NIST: Start with workload identity before expanding microsegmentation; don't rely on IP addresses alone for policy
- From CISA: Document your segmentation design and review it on a defined schedule; build change control into your process from day one
- From MITRE: Put every internet-facing service behind a DMZ; never run a public web server on the same flat network as internal file servers
- From OWASP: Use their cheat sheet diagrams as a starting reference for your own network architecture documentation
How a managed IT provider approaches segmentation for SMB clients
Most SMBs come to segmentation after a near-miss or a compliance requirement, not as a proactive project. That's understandable. The challenge is that segmentation done reactively, under pressure, tends to produce incomplete designs with undocumented exceptions that accumulate over time.
At Collett Systems LLC, the approach starts with an assessment: mapping what's actually on the network, what's talking to what, and where the highest-risk gaps are. From there, quick wins come first. Guest Wi-Fi isolation and IoT segmentation typically take one to two weeks and deliver measurable risk reduction before any major re-architecture begins. The full VLAN and firewall rollout follows in stages, with testing and rollback plans built into each phase.
The ongoing piece is where managed services make the most practical difference. Firewall rule reviews, log monitoring, and change control require consistent attention that most SMB teams don't have bandwidth for. Combining managed firewall services with identity-first controls gives you both the network-layer enforcement and the policy governance that keeps segmentation effective over time, not just on day one.
Router security is also part of the picture. The FCC's actions on router restrictions highlight how targeted threat actors exploit network infrastructure, which makes the enforcement points in your segmentation design worth reviewing carefully.
Collett Systems LLC can handle your segmentation from assessment to operation
Network segmentation delivers real security gains, but only when it's designed, implemented, and maintained correctly. For SMBs in Southeastern Wisconsin, Collett Systems LLC provides the full path: a paid IT and Security Assessment that maps your current network and identifies the highest-priority gaps, followed by managed implementation of VLANs, firewall rules, and monitoring.
The managed service covers firewall policy management, log review, quarterly rule audits, and change control, all at a fixed per-user monthly cost with no surprise invoices. Whether you need a full managed IT services engagement or a managed firewall layer added to your existing setup, the starting point is the same: a clear picture of what you have and what needs to change. Book your IT and Security Assessment to get that picture.
Frequently asked questions about network segmentation
What is the simplest form of network segmentation for a small business? A guest Wi-Fi VLAN with internet-only access is the simplest starting point. A managed switch and a capable firewall are all the hardware you need. Most SMBs can implement this in a single maintenance window.
Is a DMZ the same as network segmentation? A DMZ is one specific type of segmentation. It's a dedicated segment for internet-facing services, designed to prevent external traffic from reaching internal resources directly. Segmentation is the broader practice; a DMZ is one pattern within it.
How does network segmentation reduce ransomware risk? Ransomware spreads by scanning for reachable shares and systems. On a flat network, one infected device can reach everything. Segmentation limits that reach to the devices within the same segment, containing the spread and reducing the blast radius significantly.
Do I need microsegmentation, or are VLANs enough? For most SMBs, VLANs with firewall rules are sufficient and far easier to manage. Microsegmentation adds value in cloud environments, data centers with many workloads, or organizations with mature Zero Trust programs. Start with VLANs and add microsegmentation where the risk justifies the complexity.
How often should I review my segmentation policies? At minimum, quarterly. Any time a new application is deployed, a device is added, or a business process changes, the relevant firewall rules and VLAN assignments should be reviewed. CISA and NIST both treat segmentation as a continuous process, not a one-time configuration.
Can network segmentation affect performance? It can, in both directions. Poorly designed segmentation that routes all traffic through a single underpowered firewall creates a bottleneck. Well-designed segmentation reduces broadcast traffic and contains microbursts, which often improves performance for critical systems. The key is right-sizing your enforcement points.
What's the difference between VPN and Zero Trust network access for segmentation? A VPN grants broad network access once a user authenticates. ZTNA grants access only to specific applications based on identity, device posture, and context. For segmentation purposes, ZTNA is a more precise tool. The comparison between VPN and Zero Trust is worth reviewing if you're evaluating remote access options alongside your segmentation design.
Sources
These are the primary standards and references used throughout this guide:
